/ Home /All Centrifugal Pumps / OH6 series API 610 high speed centrifugal pump for petrol chemical metallurgical industries

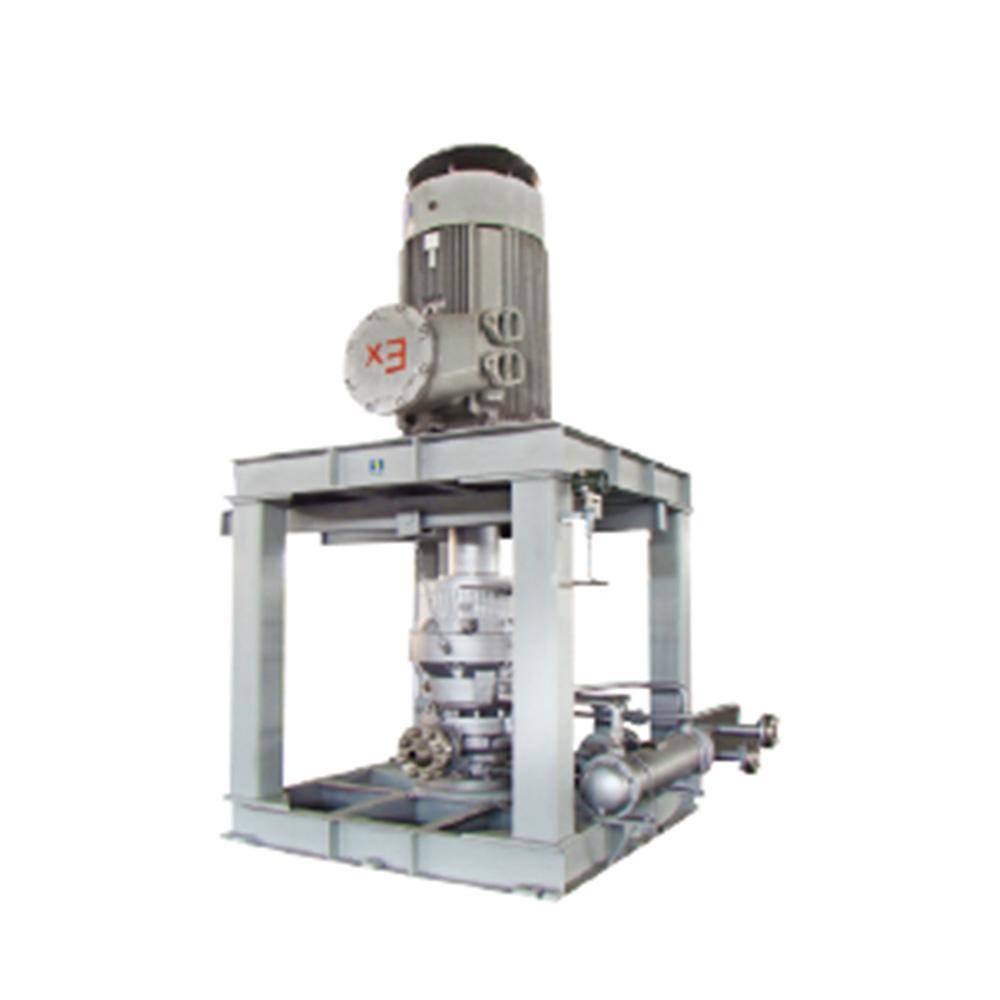

OH6 type vertical centrifugal pump
OH6 centrifugal pump

OH6 series API 610 high speed centrifugal pump for petrol chemical metallurgical industries

OH6 series GSB high speed pump is a high-speed partial flow pump with novel impeller and seal structure design.

It can replace multi-stage centrifugal pumps in the field of small flow and high head in chemical processes.

The products are widely used in petroleum, chemical, seawater desalination, electric power and metallurgical industries.

  • Medium :

    Fuel、nitrogen oxide、Petrol oil、Gas、Chemical、PE

  • Flows :

    0.5-90m3/h (2.2-396 GPM)

  • Heads :

    20-1,800m (65-5,900 ft)

  • Temperatures :

    to 80-260℃(150-485℉)

  • Pressures :

    150 / 250 bar (2,175 / 3,770 PSIG)

  • Speed :

    /

  • API Type Code :

    API 610 11th OH6
Inquiry now

API 610 OH6 High Speed Integrally Geared Single-Stage Overhung Centrifugal pump



Product profiles:

  • Our API 610 OH6 pumps are robust, single-stage overhung pumps designed for demanding industrial applications.
  • These pumps incorporate an integrally geared system, where a built-in speed-increasing gearbox is seamlessly integrated with the pump assembly.
  • The impeller is directly attached to the output shaft of the gearbox, ensuring efficient and reliable performance in high-speed operations.



Features:

  • Replacing reciprocating pump and multi-stage centrifugal pump in small flow and high head applications.
  • Compact structure, high efficiency and energy saving, reliable performance against multi-stage centrifugal pump.
  • Higher pump efficiency through high working speed of impeller, the single stage design eliminates energy losses between impellers of multi-stage pump due to friction and volume change.
  • Optimum bearing lifetime by extreme small axial force.
  • Balanced mech. seal in accordance with API 682 in compact design, ease of dismounting.
  • Extreme ease maintenance at site for its modular design.
  • Available in horizontal or vertical installation.
  • Proven performance and lifetime for medium temperature, high working pressure applications.



Applications:

  • Energy Industry Fuel feeding, nitrogen oxide, recirculation
  • Petroleum and natural gas drilling platform Process booster, injection, transfer
  • Chemical industry Acetic Acid, TPA, styrene, DMO
  • Petrochemical PE, ethene, propylene, benzene
  • Pulp &paper industry
  • Boiler fuel feeding, condensate circulation
